Product Description

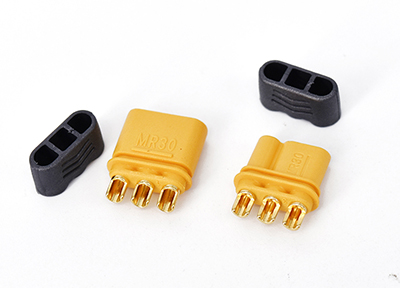

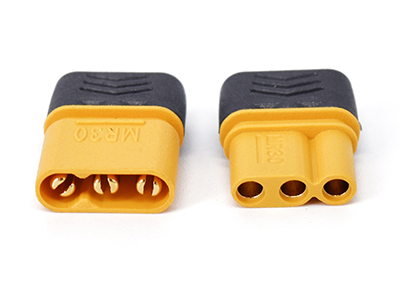

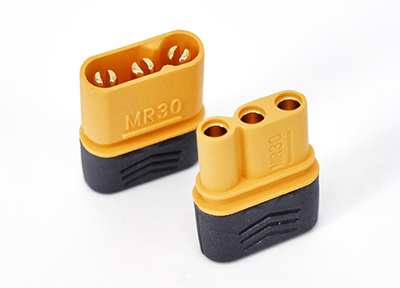

1. MR30 line to line connection, simple and convenient
2. Easy to insert, complete in one step
3. With sheath, protects the soldering joints, beautiful and safe
4. Small body release large energy
5. Standard connector for UAV
6. Connect RC Battery with Electronic equipments.
7. Satisfy miniaturization, lightweight,integration and power demand, security requirements.
|
Body material and Suface plating
|
Brass and gold plated
|
N.W./pair
|
1.2g/1.2g/1.6g
|
|
Insulation material
|
PA66
|
Insulation grade
|
UL94V-0
|
|
Original internal resistance
|
0.8MΩ
|
500 times internal resistance
|
0.85MΩ
|
|
Max.RC within 30 min
|
30A
|
Max.MC within 1min
|
40A
|
|
Recommend cable spec
|
18AWG Φ2.8mm
|
Soldering spec
|
400℃/3S
|
|
Mechanical life
|
3000 times
|
20A current, 10-300Hz frequency sweep vibration, amplitude of 5mm, 1min cycle
|
Stable voltage
|
|
|
