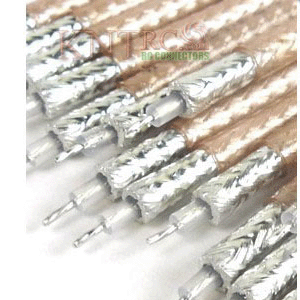

RG316 Single Braid Shield Coaxial Cable
Conductor: Diameter 0.53mm, 26AWG, 7/0.175, Silver plated annealed copper wire
Dielectric: Diameter: 1.53mm, FEP
Outer conductor: 16/5/0.092, Silver plated annealed copper wire
Jacket: Diameter: 2.53mm, FEP, Color: Brown
Nom. Impedance: 50 Ohms
Nom. Capacitance: 95.8 pF/m
VSWR (0 – 6 GHZ): Max 1.3
Dielectric strength: A.C. 1000V for 1 minute1
|
Attenuation (dB/100m)
|
100MHz
|
2GHz
|
4GHz
|
6GHz
|
8GHz
|
12GHz
|
|
34.1
|
140
|
205
|
263
|
319
|
480
|
RG316 Double Braid Shield Coaxial Cable
Conductor: Diameter 0.53mm, 26AWG, 7/0.175, Silver plated annealed copper wire
Dielectric: Diameter: 1.53mm, FEP
Outer conductor:
Braid shield 1: 16/5/0.092, Cross No. 13, Coverage 92.3%, Silver-Coated Copper
Braid shield 2: 16/5/0.092, Cross No. 13, Coverage 84.2%, Silver-Coated Copper
Jacket: Diameter: 2.93mm, FEP, Color: Brown
Nom. Impedance: 50 Ohms
Nom. Capacitance: 95.8 pF/m
VSWR (0 – 6 GHZ): Max 1.3
Dielectric strength: A.C. 1000V for 1 minute
|
Attenuation (dB/100m)
|
100MHz
|
2GHz
|
4GHz
|
6GHz
|
8GHz
|
12GHz
|
|
34.1
|
140
|
205
|
263
|
319
|
480
|
|
|
|
RG316 Single Braid Shield Coaxial Cable
Conductor: Diameter 0.53mm, 26AWG, 7/0.175, Silver plated annealed copper wire
Dielectric: Diameter: 1.53mm, FEP
Outer conductor: 16/5/0.092, Silver plated annealed copper wire
Jacket: Diameter: 2.53mm, FEP, Color: Brown
Nom. Impedance: 50 Ohms
Nom. Capacitance: 95.8 pF/m
VSWR (0 – 6 GHZ): Max 1.3
Dielectric strength: A.C. 1000V for 1 minute1
|
Attenuation (dB/100m)
|
100MHz
|
2GHz
|
4GHz
|
6GHz
|
8GHz
|
12GHz
|
|
34.1
|
140
|
205
|
263
|
319
|
480
|
RG316 Double Braid Shield Coaxial Cable
Conductor: Diameter 0.53mm, 26AWG, 7/0.175, Silver plated annealed copper wire
Dielectric: Diameter: 1.53mm, FEP
Outer conductor:
Braid shield 1: 16/5/0.092, Cross No. 13, Coverage 92.3%, Silver-Coated Copper
Braid shield 2: 16/5/0.092, Cross No. 13, Coverage 84.2%, Silver-Coated Copper
Jacket: Diameter: 2.93mm, FEP, Color: Brown
Nom. Impedance: 50 Ohms
Nom. Capacitance: 95.8 pF/m
VSWR (0 – 6 GHZ): Max 1.3
Dielectric strength: A.C. 1000V for 1 minute
|
Attenuation (dB/100m)
|
100MHz
|
2GHz
|
4GHz
|
6GHz
|
8GHz
|
12GHz
|
|
34.1
|
140
|
205
|
263
|
319
|
480
|
,, |
|
