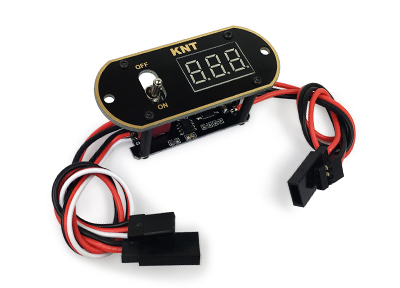

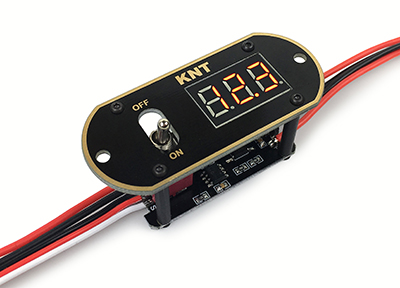

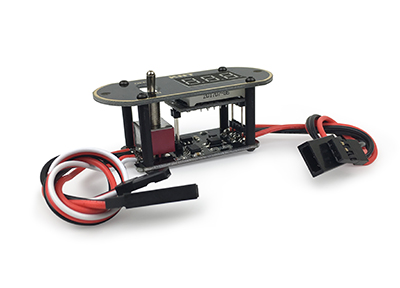

        Digital voltage switch - CDI ignition switch
Brand: KNT / OEM
MOQ: 50
Weight(Kg): 0.030
Quantity:


You have 0 itmes in your order.
Sub Total: $0 USD



Details

Product features:
Integrated CDI remote flameout switch, making flying safer

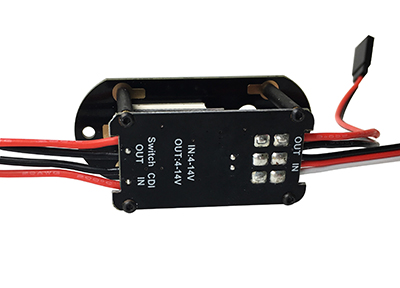

Independent CDI power supply socket. Receiver power completely separates with the CDI power, so you should not worry about that CDI arouses high frequency signal will interfere the receiver.

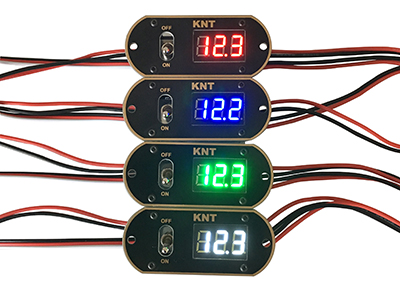

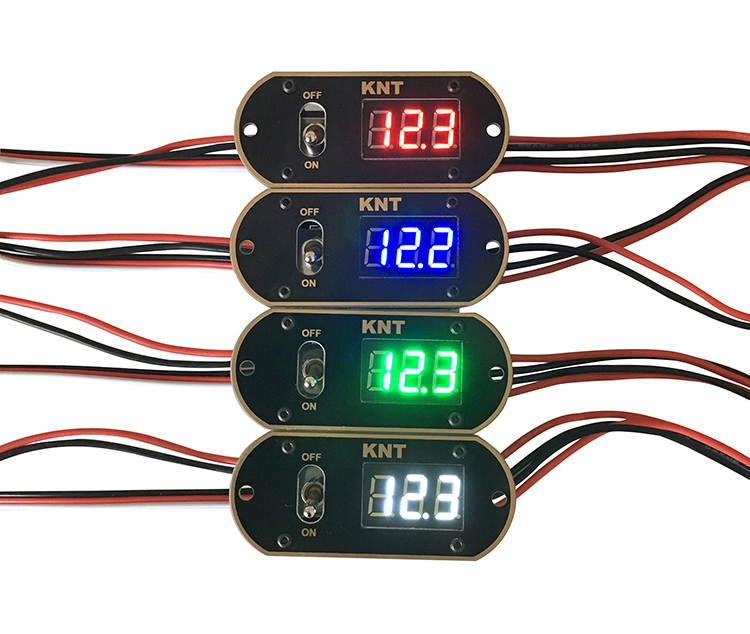

Integrated large current switch and a three led segment display the battery voltage.
Using ultra high brightness led segment which can clearly visible in the sunshine.
using switch channel of the remote control to control the CDI (usually use the fifth channel).



Technical parameters:
* Display Voltage : 4-13V

* Working Voltage :4.2-6V (If the receiver can  support the high-voltage, Operating voltage can :4.2-12 .6 V)

* CDI Input: 4-14V

* Switch Input: 4-14V

Switch Current: Max 20A

*  Pitch: 57mm
* Volume: 65mm ( L ) * 25.08MM ( W) * 24.3mm ( H )
* Weight: 30.4g



Built-in gasoline engine the CDI ignition switch, mainly used for remote control gasoline engine
CDI open flame, the remote control switch connected in series between the CDI and the CDI power
sup ply (the general election, by any remote control channel or switch channels switch channels),
the gasoline engine CDI remote control on or off, so that the effective protection of the aircraft and personal safety.



Attentions:
Not allowed to counter-battery polarity.
Do not come into contact with installation of grease or water, or near a corrosive substance.
